Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2), a highly pathogenic coronavirus that emerged in 2019, has been responsible for a terrible pandemic of an acute respiratory disorder, named ‘coronavirus disease 2019’ (COVID-19) [ 1 ]. Recently, an increase has been reported in the prevalence of some fungal infections such as mucormycosis, aspergillosis, and candidiasis in patients with COVID-19 [ 2 ]. In the case of patients with COVID-19, the use of corticosteroids, such as prednisolone and dexamethasone, is recommended to modulate the inflammatory response, reduce lung damage, and prevent the spread of lung failure [ 3 ]. These therapies can prepare the condition for the presence of human opportunistic fungal pathogens such as Mucorales order.
Mucormycosis infection in the condition of the COVID-19 pandemic has been reported as a fulminant and lethal infection [ 2 ].
Rhizopus spp., Lichtheimia spp., Mucor spp., and Rhizomucor spp. are frequently involved in mucormycosis, along with the fungi of the genus Syncephalastrum spp., Saksenaea spp., Apophysomyces spp., and Cunninghamella spp. [ 4 ]. Nowadays, the genus Syncephalastrum comprises three species, including S. racemosum, S. monosporum, and S. contaminatum [ 5 ]. S. racemosum has been recovered in several cases in patients without COVID-19 [ 4 ].
A rhino-orbital mucormycosis infection begins in the nasal cavities and progresses to rhinosinusitis, pharyngitis, and ocular cellulitis with necrosis, ulcers, and black discharges [ 6 ]. Early diagnosis and treatment of mucormycosis are important and affect the outcome of treatment, as it increases the patient’s chances of survival, reduces the need for surgery, and causes less pain for the patient [ 7 ]. Muthu et al. (2021) reported 2,568 patients with COVID-19-associated mucormycosis (CAM) in cases with diabetes mellitus (DM) [ 8 ]. Rudramurthy et al. (2021) described that uncontrolled DM and high doses of corticosteroid treatment are the principal predisposing factors for this surge [ 9 ]. This study reports S. racemosum as a causative agent of rhino-orbital mucormycosis in a COVID-19 patient with uncontrolled DM.

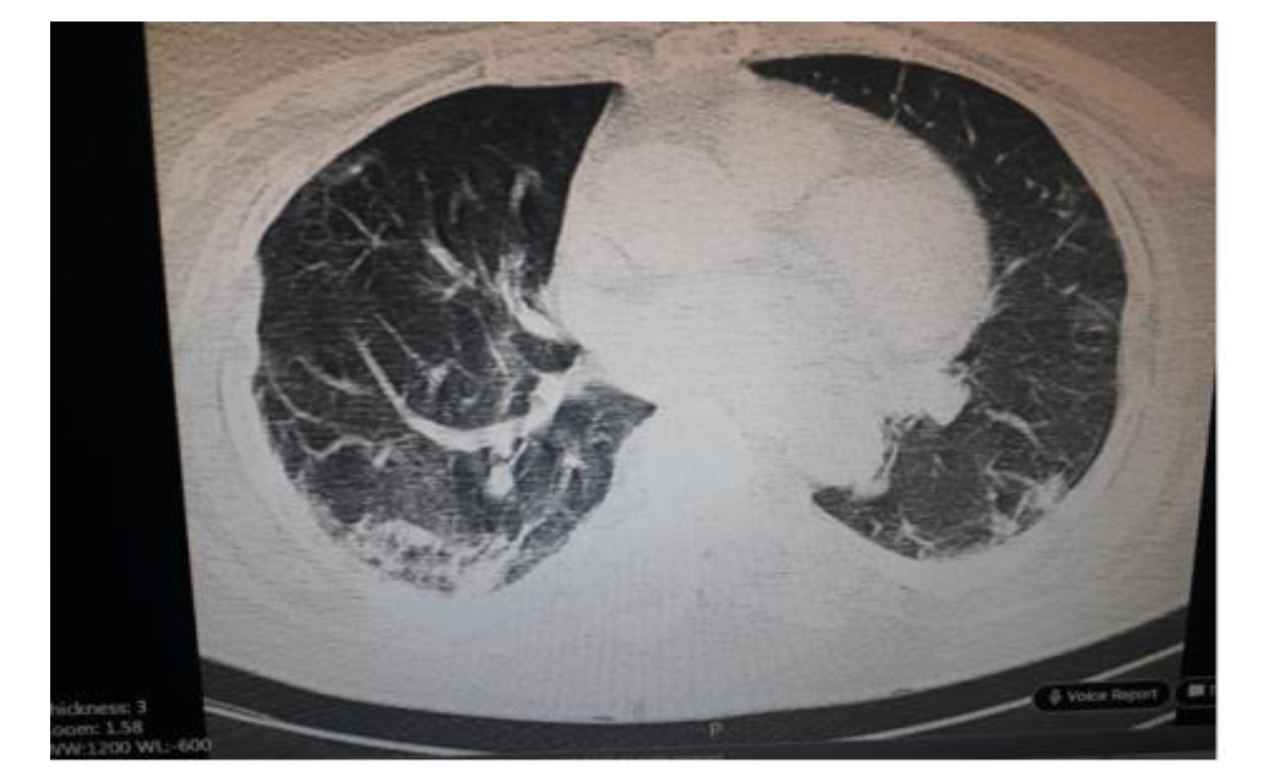

A 73-year-old woman was admitted to Ayatollah Rouhani Hospital in Babol, Iran, on May 15, 2021, with such clinical symptoms as high fever, sore throat, body aches, anorexia, decreased sense of smell and taste, and respiratory problems, as well as the pulse rate of 65 rpm, blood pressure of 110.70 mmHg, and 95% oxygen saturation at admission. The patient had a 10-year history of DM, and her blood sugar level and HbA1c were 305 mg/dL and 10.8%, respectively. One day after admission, a computed tomography (CT) scan of the chest showed evidence of lung involvement (Figure 1) and a real-time polymerase chain reaction (RT-PCR) confirmed the COVID-19 infection (cycle threshold value=27). An infectious disease specialist monitored the necessary clinical functions, from admission to June 20, 2011, to assess the patient’s condition and treatment progress (Table 1). Standard treatment protocols were implemented for COVID-19 treatment management. Initially, the patient stopped taking glibenclamide, and later it was replaced with Zipmet at a dose of 50/1000. Remdesivir injection was started with a daily dose of 200-100 mg along with interferon beta-1a every day in the first week. Dexamethasone 4 mg twice daily for two weeks with heparin, ceftriaxone, and Lasix were prescribed as well. Moreover, prednisolone 25-175 mg daily was also administered during hospitalization.
|Investigations||At presentation (15 May)||20 May||26 May||4 June||11 June||20 June|
|WBC||5.2 × 103||6.8 × 103||24.9 × 103||20 × 103||9.3 × 103||8.4 × 103|
|Neutrophil count (%)||77.7||72||88||80.7||79.8||68.1|
|Lymphocyte count (%)||19.2||28||9||9.5||13.2||18.4|
|RBC||5.89 × 106||6.21 × 106||6.69 × 106||5.19 × 106||4.16 × 106||4.36 × 106|
|Platelet count, /lL||152 × 103||228 × 103||329 × 103||248 × 103||163 × 103||232 × 103|
|Alkaline phosphatase, IU/L||153||185||189||135||134||172|
|Serum creatinine, mg/dL||ND||0.9||11||1.3||2.3||1.3|
|ND; not determined|
On the sixth day of hospitalization, blood sugar reached 338 mg/dL and 8 units of insulin were administered daily for one week. On the ninth day of hospitalization, carotid Doppler ultrasonography of the artery of the neck and eyes showed no evidence of thrombosis and dissection. However, evidence of mild atherosclerosis was observed in the form of calcified plaques in the left carotid bulb. Treatment with Amphotericin B was started at a single dose of 150 mg/kg/day and continued until the last day of hospitalization at a dose of 250 mg/kg/day.
On the 20th day of hospitalization, the patient complained of swelling and pain in the left eye and nasal involvement (Figure 2). The clinical examination of the eye revealed proptosis, chemosis, and cellulitis around the eye, as well as internal vision limitation. The complications in oculus sinister (OS) were observed in the left eye. Magnetic resonance imaging (MRI) of the eye and paranasal sinus showed drooping of the upper eyelid of the left eye, indicating the involvement of the upper branch of the III nerve, as well as hypertropia or exotropia in the patient’s eye (Figure 2). The forehead and mouth fold shifted to the right due to the seventh cranial nerve (CN VII) involvement. The most important ocular problem was the presence of a cherry-red spot indicating the involvement of the central retinal artery [ 10 ]. Moreover, turbidity and thickening of the mucosa of the right frontal sinuses, maxilla, sphenoid, ethmoid, and effusion of the left sphenoid sinus were detected in the paranasal sinuses (Figure 2).
On the 30th day of hospitalization, the patient underwent endoscopic sinus surgery and removal of blackish necrotic tissue. The biopsy specimens were referred to the department of histopathology and mycology. During the second surgery, on the 37th day of hospitalization, the patient’s sinuses were drained during surgery to facilitate treatment. In the first and second samples, a part of the biopsy specimen was inoculated on Sabouraud dextrose agar supplemented with chloramphenicol (SC, Merck, Germany) (Figure 3) and incubated at 37 °C. After two days of incubation, a small colony of fungal growth was observed in the culture (Figure 3-A). The colony was examined under a microscope after staining with lactophenol cotton blue (Figure 3, B). On biopsy and histopathology examination, aseptate, broad, and ribbon-shaped hyphae were observed in the tissue sections stained with methylene blue and H&E (Figures 3, C, and D).
The DNA extraction and molecular identification at the species level were performed by sequencing the ITS rDNA (ITS1 5'-TCCGTTGGTGAACCAGCGG-`3 and ITS4 5'-TCCTCCGCTTATTGATATGC-`3), as previously described [ 11 ]. The DNA sequence of the ITS rDNA region (accession number OL636400) showed 100% similarity with S. racemosum (KX815982).
Intravenous liposomal Amphotericin B (1 mg/kg/ day) was initiated on day five and the patient underwent surgery on day 37 with excision of necrotic tissue.
The patient’s condition was stable during the follow-up seven days after the complete evacuation of the sinuses. Amphotericin B was stopped and posaconazole oral suspension (80 mg/day) resumed for 30 days.
In vitro antifungal susceptibility testing of the S. racemosum was done according to the recommendations stated in the Clinical and Laboratory Standards Institute (CLSI) M38-A3 guidelines [ 12 ]. The minimum inhibitory concentrations (MICs) were 0.032 μg/ml for amphotericin B, 0.25 μg/ml for luliconazole, 0.5 μg/ml for posaconazole, 0.5 μg/ml for itraconazole, 4 μg/ml for tavaborole, 1 μg/ml for econazole, 1 μg/ml for isavuconazole, 2 μg/ml for caspofungin, 4 μg/ml for ketoconazole, 4 μg/ml for natamycin, ≥4 μg/ml for terbinafine, ≥4 μg/ml for butenafine, ≥16 μg/ml for voriconazole, ≥16 μg/ml for miconazole, ≥16 μg/ml for efinaconazole, ≥64 μg/ml for fluconazole, ≥16 μg/ml for sertaconazole, ≥16 μg/ml for tioconazole, ≥16 μg/ml for ravuconazole. Minimum effective concentration (MEC) values were 1 μg/ml for anidulafungin, and 4 μg/ml for micafungin.
Rhino-orbital zygomycosis is a serious life-threatening fungal infection in cases with diabetes mellitus. The infection can occur following inhalation and deposition of sporangiospores in nasal turbinates [ 13 ]. The development of the disease from paranasal sinuses is either straight or through the vascular occlusion. Infection can spread to the eye through the angular and lacrimal vena [ 14 ]. It spreads intracranially by invading the cavernous sinus and the apex of the orbit (superior orbital fissure ), ophthalmic artery vessels, and cribriform plate ethmoid bone and rarely invades the carotid artery [ 15 ].
The clinical findings reported in cases with rhino-orbital zygomycosis include pain, fever, headache, vision loss, chemosis, proptosis, ophthalmoplegia, and facial paralysis [ 4 , 13 ]. The main common agent involving rhino-orbital zygomycosis is Rhizopus spp., followed by Rhizomucor. Other agents which have been reported to cause rhino-orbital zygomycosis include Absidia spp., Mucor, Cunninghamella, Saksenia, and Syncephalastrum [ 4 ].
In the present case report, we described a case of rhino-orbital zygomycosis due to S. racemosum in an elderly diabetic woman who was previously treated with high doses of corticosteroid for the prevention of lung inflammation following COVID-19 infection.
Several studies announced that corticosteroids have been associated with lower mortality rates in patients with COVID-19; however, they have increased nosocomial fungal infections [ 4 ]. The results of observational studies were in concordance with those obtained in the present study. The literature review showed many cases of patients with secondary causes of zygomycosis named COVID-19-associated mucormycosis (CAM) [ 16 ] with pulmonary, gastrointestinal, and rhino-orbital disorders [ 17 ].
According to Table 2, S. racemosum rhino-orbital infection was first reported in a middle-aged man following hepatic cirrhosis in 2008 [ 18 ]. Subsequently, six cases have been documented. The summarized data of cases are presented in Table 2.
|Authors [ 27 ]||Age/Gender||Country||Underlying condition||Therapy||Outcome||References|
|Baradkar et al. ||45/M||India||Hepatic cirrhosis||Surgical debridement, Amphotericin B||Survived||[ 28 ]|
|Gomez MZR et al. Unpublished case ||64/F||United States||Relapsed ALL after allogenic hematopoietic stem cell transplantation||Liposomal Amphotericin B, granulocyte transfusions and G-CSF||Survived||[ 29 ]|
|Mathuram et al. ||63/M||India||Diabetes mellitus||Amphotericin B||Survived||[ 15 ]|
|Jayaprakash Rao et al. ||58/F||India||Diabetic ketoacidosis||Surgical debridement, Amphotericin B||Survived||[ 30 ]|
|Singh et al. ||40/M||India||Diabetes||Endoscopic sinus Debridement with topical LAmb. Intravenous LAmb 300 mg daily OD for 3 weeks and later shifted to voriconazole 200 BD||Survived||[ 23 ]|
|40/M||Diabetes||Anterior and posterior Ethmoidectomy with orbital exenteration and Lamb for 3 weeks||Survived|
|Gulati et al. ||13/F||India||Aplastic anaemia||Amphotericin B, 25 mg/day||Died||[ 14 ]|
|Taghizadeh et al. ||73/F||Iran||Diabetes/COVID-19||Liposomal Amphotericin B||Survived|
We isolated S. racemosum for the first time in a diabetic patient with COVID-19; however, there have been different reports of this species in non-COVID-19 cases in some countries such as India, Italy, Serbia, and the USA [ 14 ].
Gulati et al. isolated S. racemosum from pansinusitis in a 13-year-old patient with aplastic anaemia [ 14 ] and Pavlovic et al. [ 19 ] reported onychomycosis caused by S. racemosum in Serbia in a patient subjected to injury during a soccer game.
Basically, treatment of zygomycosis consists of surgical debridement, antifungal therapy, and control of the underlying diseases. Usually, liposomal Amphotericin B and posaconazole are the two most common choices used for zygomycosis [ 20 ]. In the current report, the patient received liposomal Amphotericin B for one month in combination with surgical debridement, resulting in the survival of the patient. Afterward, she managed to take posaconazole for four weeks.
However, in the study performed by Gulati et al. [ 14 ], the patient died after treatment with deoxycholate and amphotericin B.
In AFST analysis, S. racemosum showed good susceptibility to Amphotericin B, 0.032 µg/ml; luliconazole, 0.25 µg/ml; posaconazole, 0.5 µg/ml; and itraconazole, 0.5 µg/ml, respectively. The AFST evaluation for S. racemosum reported by Raju et al. (2020) also demonstrated a low MIC value for posaconazole (0.06 µg/ml), Amphotericin B, and itraconazole (0.5 µg/ml) [ 21 ]. Chowdhary et al. [ 22 ] previously showed that S. racemosum isolates from rhino-cerebral and cutaneous samples had MICs of 0.047 μg/ml for Amphotericin B, and 16 μg/ml for itraconazole and voriconazole [ 22 ].
In another study by Singh et al. [ 23 ] four clinical isolates of S. racemosum originated from subcutaneous and invasive infection showed low MIC values for amphotericin B (AMB) (GM MIC, 0.218 μg/ml), itraconazole (ITR) (GM MIC, 0.178 μg/ml), posaconazole (POS) (GM MIC, 0.325 μg/ml), and terbinafine (TER) (GM MIC, 0.071 μg/ml).
Our results indicated that luliconazole (with MIC=0.25 µg/ml) had better activity against S. racemosum compared with posaconazole (MIC= 0.5 µg/ml), isavuconazole (MIC= 1 µg/ml), and voriconazole (MIC >16 µg/ml).
Omran et al. [ 25 ] and Abastabar et al. [ 26 ] recently noted that luliconazole had superiority against Aspergillus flavus, A. fumigatus, and Fusarium strains in comparison with the common antifungal drugs.
Our study emphasized the pathogenic role of S. racemosum as a possible agent of mucormycosis in diabetic patients with COVID-19. To the best of our knowledge, this is the first description of S. racemosum infection in COVID-19 patients worldwide. Early detection of S. racemosum using precise methods such as PCR sequencing is uncommon, but treatment with antifungal drugs such as amphotericin B or posaconazole as well as surgical debridement is the cornerstone of proper management of CAM due to S. racemosum.
The written informed consent was obtained from the patient. This research was financially supported (grant number: 9707034) by the Babol University of Medical Science and Mazandaran University of Medical Sciences (grant number: 5747).
M.T.A., M.A., and S.M. were responsible for manuscript writing and editing. M.B., M.N., L.F., S.Y., B.N., and A.T. were involved in the management of patients during the hospital stay. M.T.H., J.J., and I.H. thoroughly reviewed the manuscript. All authors have made a substantial contribution to the current case report and approved the final manuscript.
Conflicts of interest
The authors reported no conflicts of interest.
No financial interests related to the material of this manuscript have been declared.
This study was approved by the ethics committee of the Babol University of Medical Science (IR.MUBABOL.HRI.REC.1400.117) and Mazandaran University of Medical Science (IR.MAZUMS.REC. 1398.1136), respectively.
